| CBN GRADE | FEATURE | APPLICATION |
| SBN630 | 80% -85% CBN main size 25um Al-Ni phase | Suitable for rough to semi precision machining and intermittent machining of difficult to machine materials such as gray cast iron, ductile iron, high hard alloy cast iron, high nickel chromium and high chromium cast iron, high manganese steel, etc. |
| SBN680 | 85%~90% CBN main size 20 μ m | Used for cutting high chromium/nickel cast steel rollers, as well as for processing high-speed steel and quenched steel materials. During high-speed and efficient cutting, it has a longer tool life. |
| SBN500 | 85%~90% CBN main size12 μ m | Used for cutting high chromium/nickel cast steel rollers, as well as for processing high-speed steel and quenched steel materials. During high-speed and efficient cutting, it has a longer tool life. |
| SBN2080 | 90% CBN main size 4 μ m | Applied to continuous and light intermittent cutting of gray cast iron, powder metallurgy, and partially quenched steel materials. |
| SBN910 | 50%~65% CBN | During the processing, high cutting rate, good surface smoothness, and long tool life can be achieved. Suitable for continuous and moderate intermittent turning applications of quenched steel. |

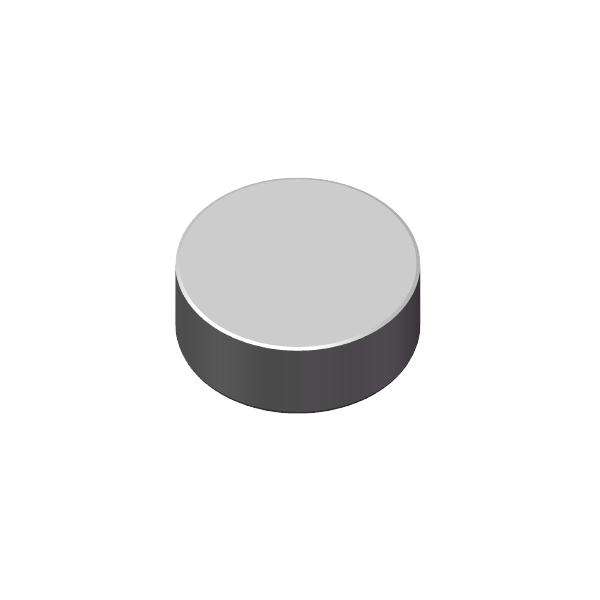

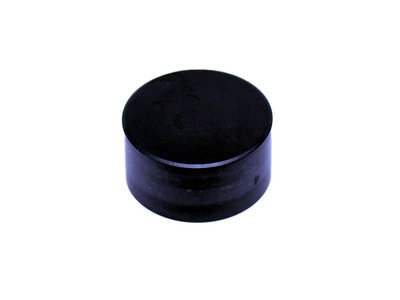

| Model | L | IC | S | R |
| RNGN250700 | 25.4 | 25.4 | 7.94 | 0 |
| RNGN201000 | 20 | 20 | 10 | 0 |
| RNGN200700 | 20 | 20 | 7.94 | 0 |
| RNGN150700 | 15.875 | 15.875 | 7.94 | 0 |
| RNGN120700 | 12.7 | 12.7 | 7.94 | 0 |
| RNGN120400 | 12.7 | 12.7 | 4.76 | 0 |
| RNGN090400 | 9.525 | 9.525 | 4.76 | 0 |

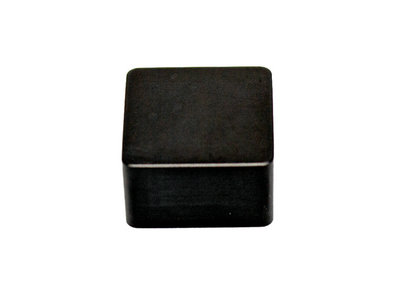

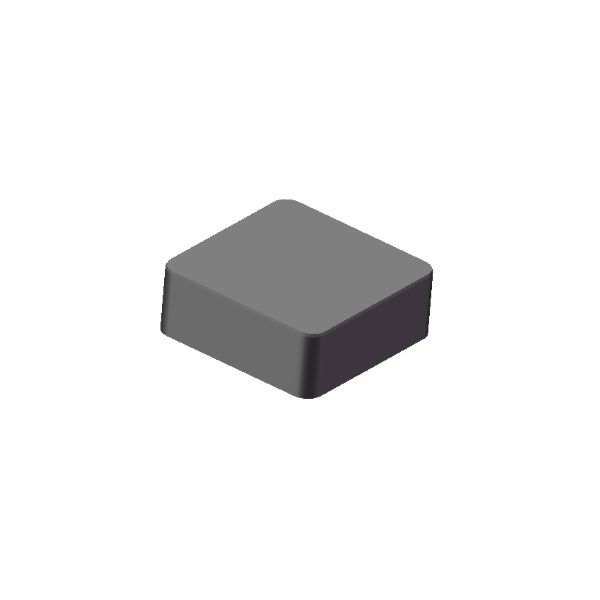

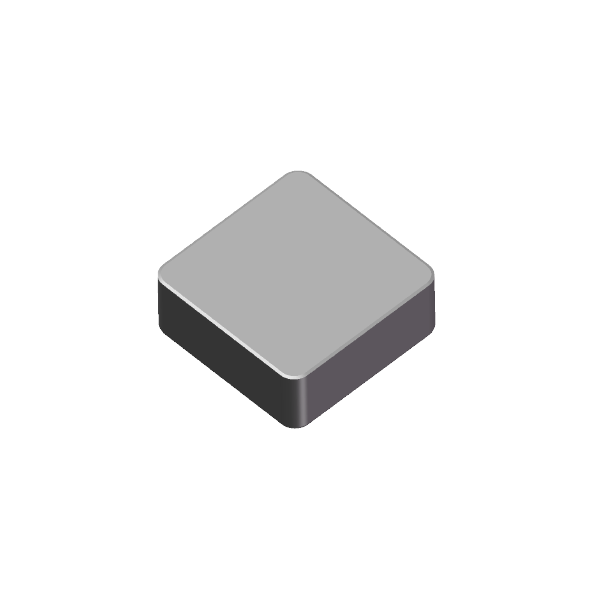

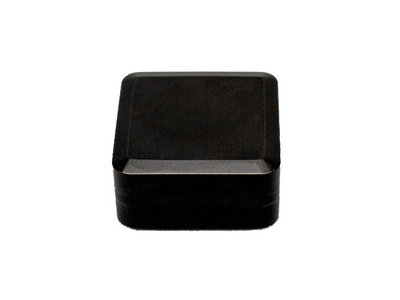

| Model | L | IC | S | R |
| SNGN201012 | 20 | 20 | 10 | 1.2 |
| SNGN200712 | 20 | 20 | 7.94 | 1.2 |
| SNGN150716 | 15.875 | 15.875 | 7.94 | 1.6 |
| SNGN120712 | 12.7 | 12.7 | 7.94 | 1.2 |
| SNGN120408 | 12.7 | 12.7 | 4.76 | 0.8 |
| SNGN090404 | 9.525 | 9.525 | 4.76 | 0.4 |

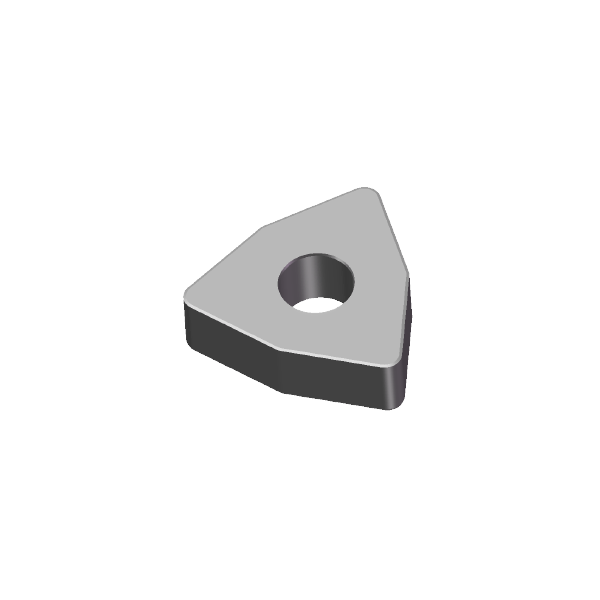

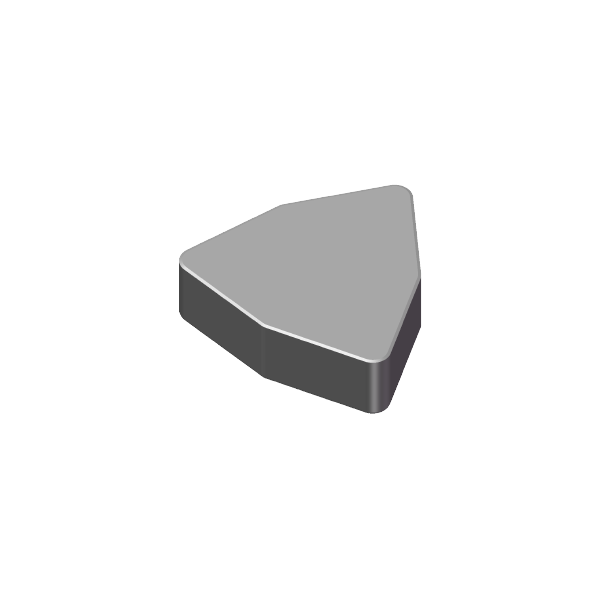

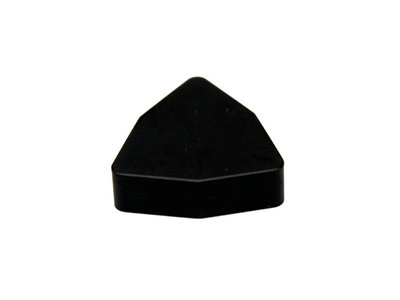

| Model | L | IC | S | R |
| WNGN080404 | 8.79 | 12.7 | 4.76 | 0.4 |
| WNGN080408 | 8.79 | 12.7 | 4.76 | 0.8 |
| WNGN080412 | 8.79 | 12.7 | 4.76 | 1.2 |

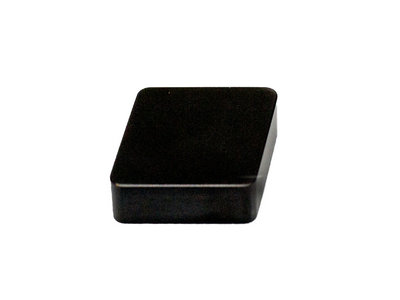

| Model | L | IC | S | R |
| CNGN120404 | 12.9 | 12.7 | 4.76 | 0.4 |
| CNGN120408 | 12.9 | 12.7 | 4.76 | 0.8 |
| CNGN120412 | 12.9 | 12.7 | 4.76 | 1.2 |
| CNGN120708 | 12.9 | 12.7 | 7.94 | 0.8 |
| CNGN120712 | 12.9 | 12.7 | 7.94 | 1.2 |
| CNGN160708 | 16.1 | 15.875 | 7.94 | 0.8 |
| CNGN160712 | 16.1 | 15.875 | 7.94 | 1.2 |

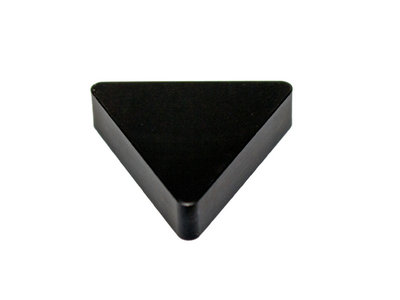

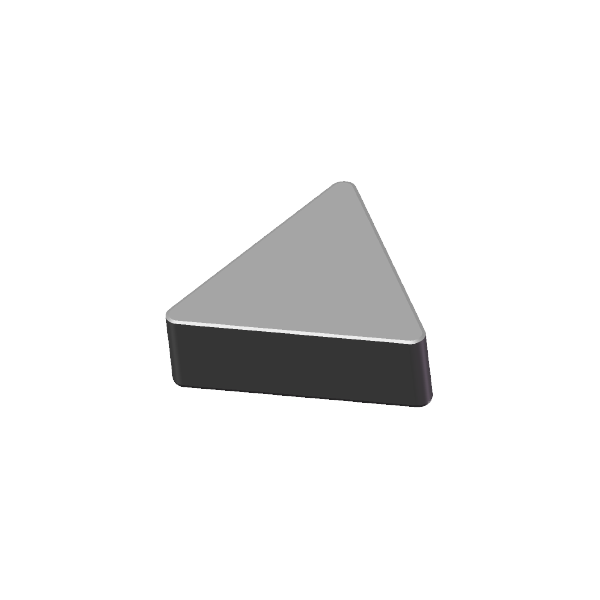

| Model | L | IC | S | R |
| TNGN110404 | 11 | 6.35 | 4.76 | 0.4 |
| TNGN160404 | 16 | 9.525 | 4.76 | 0.4 |
| TNGN160408 | 16 | 9.525 | 4.76 | 0.4 |
| TNGN220408 | 22 | 12.7 | 4.76 | 0.4 |

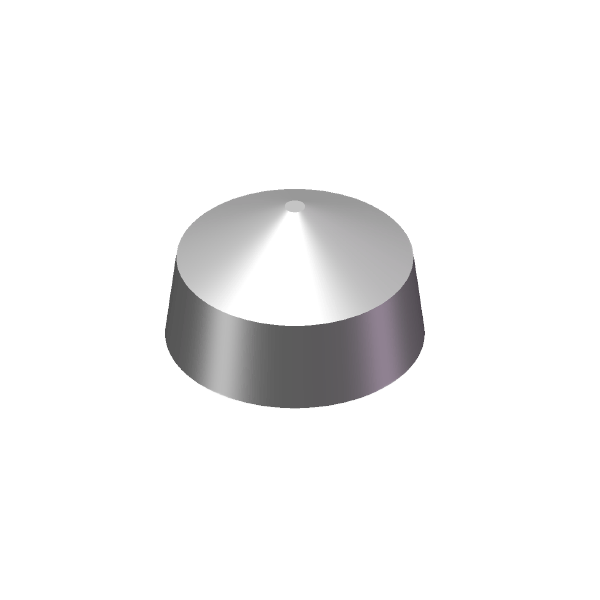

| Model | L | IC | S | R |
| RCGX060400V | 6.35 | 6.35 | 4.76 | 0.8 |
| RCGX060600V | 6.35 | 6.35 | 6.35 | 0.8 |
| RCGX090700V | 9.525 | 9.525 | 7.94 | 1 |
| RCGX120700V | 12.7 | 12.7 | 7.94 | 2 |
| RCGX151000V | 15.875 | 15.875 | 10.0 | 2 |
| RCGX191000V | 19.05 | 19.05 | 10.0 | 2 |
| RCGX201200V | 20.0 | 20.0 | 12.0 | 2 |
| RCGX251200V | 25.4 | 25.4 | 12.0 | 2 |
| Model | L | IC | S | R |
| DNGN110404 | 11.0 | 9.525 | 4.76 | 0.4 |
| DNGN110408 | 11.0 | 9.525 | 4.76 | 0.8 |
| DNGN110412 | 11.0 | 9.525 | 4.76 | 1.2 |
| DNGN110604 | 11.0 | 9.525 | 6.35 | 0.4 |
| DNGN110608 | 11.0 | 9.525 | 6.35 | 0.8 |
| DNGN110612 | 11.0 | 9.525 | 6.35 | 1.2 |
| DNGN150604 | 15.5 | 12.7 | 6.35 | 0.4 |
| DNGN150608 | 15.5 | 12.7 | 6.35 | 0.8 |
| DNGN150612 | 15.5 | 12.7 | 6.35 | 1.2 |
| DNGN150704 | 15.5 | 12.7 | 6.35 | 0.4 |
| DNGN150708 | 15.5 | 12.7 | 6.35 | 0.8 |
| DNGN150712 | 15.5 | 12.7 | 6.35 | 1.2 |
| Model | L | IC | S | R |
| RCGX060400Y | 6.35 | 6.35 | 4.76 | 0.6 |
| RCGX060500Y | 6.35 | 6.35 | 5.0 | 0.6 |
| RCGX060700Y | 6.35 | 6.35 | 7.94 | 0.6 |
| RCGX090700Y | 9.525 | 9.525 | 7.94 | 1 |
| RCGX120700Y | 12.7 | 2.7 | 7.94 | 1.2 |
| Model | L | IC | S | R |
| WNGA080404 | 8.79 | 12.7 | 4.76 | 0.4 |
| WNGA080408 | 8.79 | 12.7 | 4.76 | 0.8 |
| WNGA080412 | 8.79 | 12.7 | 4.76 | 1.2 |
| L | Edge Length |
| IC | Diameter of inscribed circle |
| S | Standard Thickness |
| R | Radius |
RE:
The above information is for reference only.
OEM & ODM terms acceptable.
Customized solution and specifications welcome.
